Foot Pedal Operated Drill

Foot Pedal Operated Drill
Foot Pedal Operated Drill
Product Code : FPOD 41
Brand Name : NATIONAL INNOVATION FOUNDATION
Product Description

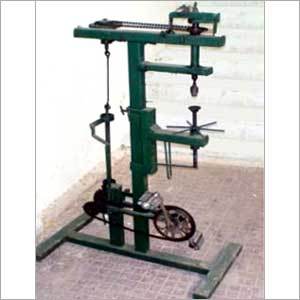

Foot Pedal Operated Drill

This foot operated drill is fitted with a drill bit, used for drilling holes in various materials. The drill bit is gripped by a chuck at one end of the drill and rotated while cycling the device. The tip of the cutting tool does the work of cutting into the target  material. There is an iron plate, on which the job is kept, placed beneath the drill bit. This plate is attached with a handle for raising or lowering the position of a job. He has made this device by using old gear and spare iron parts. It is used to drill larger pieces of material made of metal, wood, PVC etc. It could be very useful in those areas where electricity is irregular or insufficient. It costs about Rs 2000/- only.

Technical Specifications

  • Overall Size ( Height - 1280mm, Width – 975mm, Depth – 610mm)
  • Weight 75 kg
  • Distance from column surface to drill center - 528mm
  • Pedal operations - 65 pedals (aprox.) / minute
  • Output - RPM 1000 (aprox.)
  • Drill capacity up to 12mm dia.
  • Motor 1HP – 1440 RPM
    • Three speeds by Cone pulley “A” Section ‘V’ belt ( 2158 , 1440 & 908 RPM)
